Focus

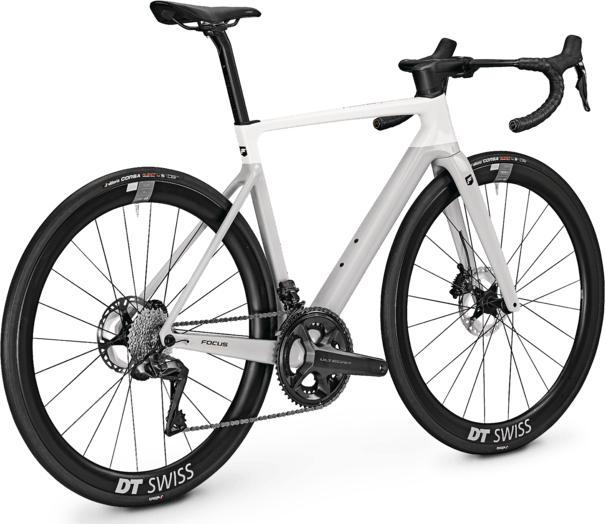

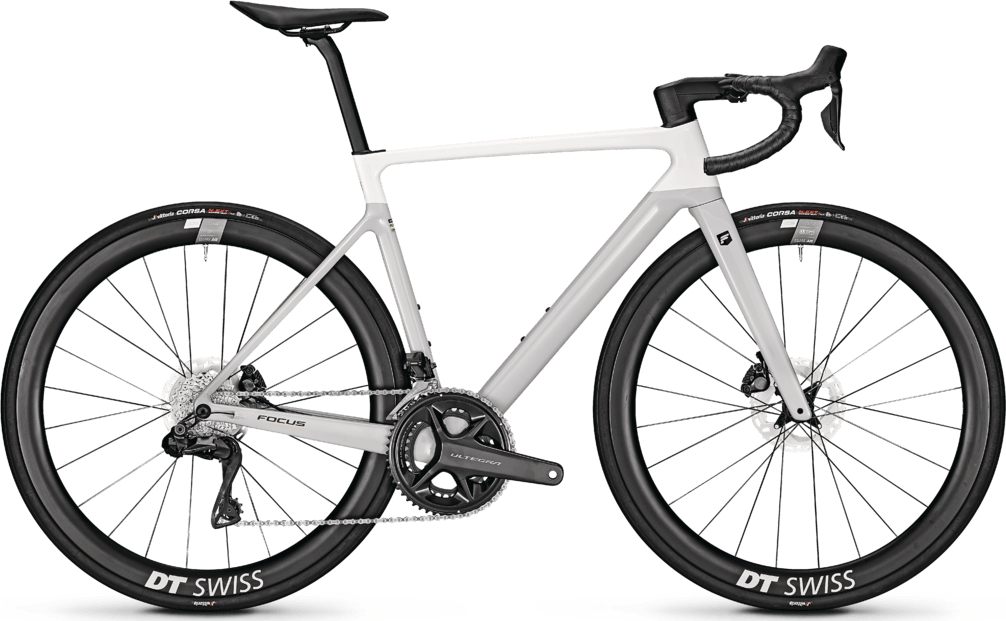

Focus Izalco Max 9.8

Focus Izalco Max 9.8

List price €4.849,00
List price €6.799,00 Price €4.849,00
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Size

Makes you faster


We wondered: what is the very essence of a road bike? Speed! Is this what Izalco Max represents? Absolutely yes! Our goal is that you are fast on Izalco Max. Therefore everything related to Izalco Max is fast, without compromise.

Where the details count, we have created our fastest road bike ever! It is the perfect mix of aerodynamics, rigidity and weight for those who do not compromise on speed in every situation. With Izalco Max there are no slow runs. It is truly the essence of speed.

Main features

  • Max carbon max frame (865 g)
  • Electronic Shimano Ultegra Di2 2x12
  • Carbon wheels DT Swiss Erc 1600

Specific

CHASSIS
Max Technology Carbon, Disc, BB86, 142x12 mm Thru Axle, Flat Mount 160/140 mm, Internal Cable Routing

FORK
Max Technology Carbon, Integrated Cable Routing, Disc, 100x12 mm, Flat Mount

Change
Shimano Ultegra R8150 DI2, 12-Speed

Front derailler
Shimano Ultegra of2 R8150, 12-Speed

Rear derailler
Shimano Ultegra Di2, RD-R8150, 12-Speed

Pignoni package
Shimano Ultegra CS-R8100, 12-Speed

CHAIN
Shimano XT CN-M8100, 12-Speed

Char
Shimano Ultegra FC-R8100, 12-Speed

TRANSMISSION
Front: 52/36, Rear: 11-30

Central movement
Shimano Pressfit Road BB86

Handlebar
Easton Ec70 Aero, Carbon, Drop: 125 mm, Reach: 80 mm

Handlebar attack
Focus C.I.S. 2.0 Integrated, 31.8 mm, Aluminium, with Garmin / Wahoo-Mount

Steering series
ACROS IS 52/286-IS52/40 (ICR), Focus Integrated C.I.S.

SADDLE
Fi'zi: K Vento Argo R5

Bra
Focus Aero Carbon, D-Shape, 350 mm, set-back: 15 mm

BRAKES
Shimano Ultegra Br-R8170

Description Leve brakes
Shimano Ultegra R8170, Di2

BRAKES
Disc

WHEELS
DT Swiss ERC1600, Carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm Height

Tires
Vittoria Corsa, Next Tlr, 28-622, Folding

Change
24

Weight of the battery bicycle included in kg
7.75 kg


* Subject to technical changes without notice. Excluding errors and omissions.

** Weight in the size M, standard specifications and without pedals.

GEOMETRY

XXS XS Sort M THE XL XXL
Size (mm) 47 50 52 54 56 58 61
CUT 470 500 520 540 560 580 610
Handlebar width (mm) 400 400 400 420 420 420 440
Handbridge attachment length 80 90 100 110 110 120 120
Pedesty length (mm) 165 165 170 172.5 172.5 175 175
Vertical tube length 360 360 360 360 360 360 360
TO Seat Tube Length 455 475 495 515 535 555 585
B Top tube length 505 517 530 543 568 582 607
C Steering angle (mm) 70 71 72 72.5 72.5 73 73
D Vertical tube corner (mm) 75 74.5 74 73.5 73.5 73 73
AND Rear scoderi length 410 410 410 410 410 410 410
F Central movement height 72 72 72 72 72 72 72
G Steering tube length 90 100 115 135 155 175 195
H Fork height 371.5 371.5 371.5 371.5 371.5 371.5 371.5
THE Pre-caric fork 46 46 46 46 46 46 46
J STEP 975 976 975 979 1004 1008 1033
K Stack 500 513 531 552 571 592 611
THE Reach 370 375 378 380 399 401 420
