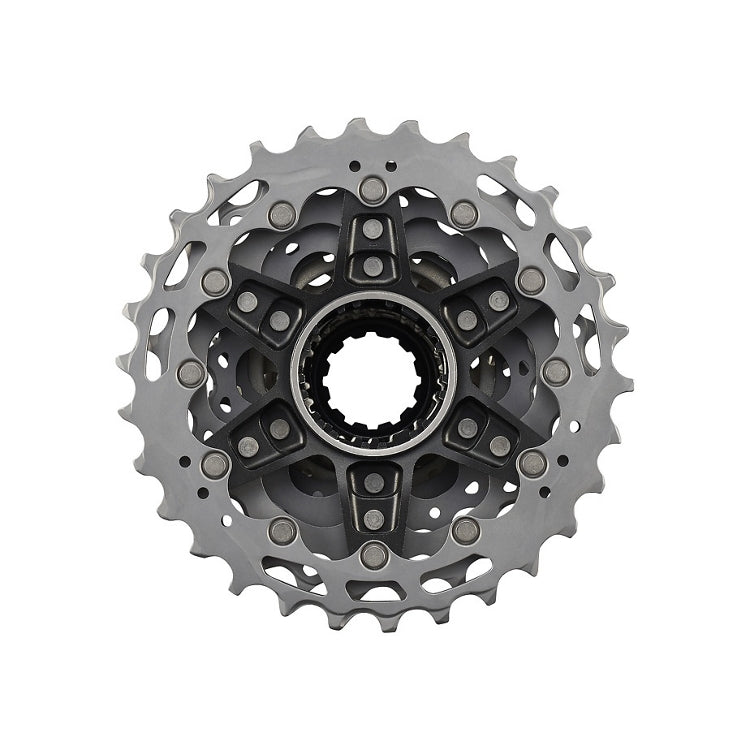

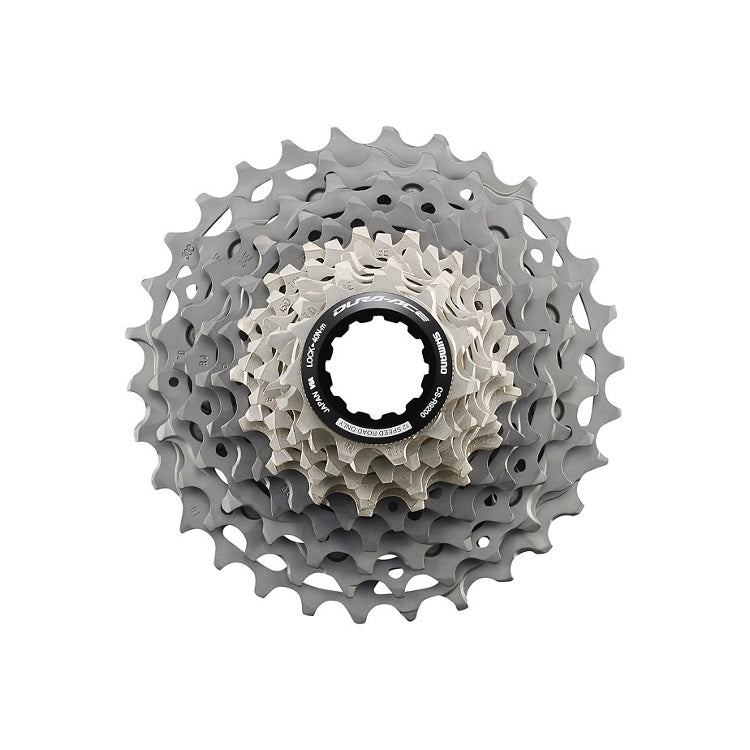

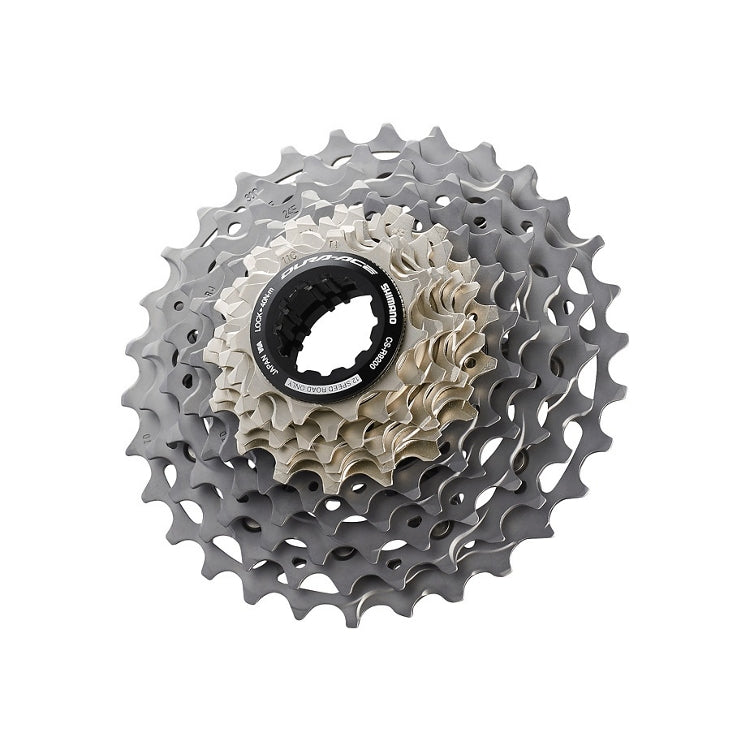

Shimano Dura-Ace CS-R9200 12s Pacco Pignoni
Shimano Dura-Ace CS-R9200 12s Pacco Pignoni
Impossible to upload the availability of withdrawal
L'UltraFluida experience of the Dura-Ace R9200 to 12 speed range allows you to go up, sprinkle and raise your limits without stopping to think about the next gear gear. The biggest pignons maximize L'efficiency of the transmission system and create compatibility with the Shimano 11 and 12V hub bodies.
The Hyperglide+ cassette revolutionized the gearbox in off -road vehicle with a perfect fluidity of change and climb. The time has come for technological changes for road cycling. Even during the maximum uphill efforts or near the finish line, the runners no longer need to reduce the pressure on the pedals to change gears. In any march, the Dura-Ace R9250 transmissions Massimizzano L'efficiency thanks to larger pignons and maintain compatibility with the bodies of the existing 11 speed hubs. All this passing to 12-speed and without increasing weight, the CS-R9200 Dura-Ace boxes are the new frontier for street bikes.
CHARACTERISTICS
Product specifications
| N. Model | CS-R9200-12 |
|---|---|
| SERIES | Dura-Ace R9200 Series |
| Average weight | 223 (11-30d) 253 (11-34d) |
| Type | Hyperglide+ |
| Pignons | 12 |
|---|---|
| Compatible chain | 12 -speed Hg |
| Combination name (group name) | 11-30d, 11-34d |
| Combination*Titanium Pignone | 1 | 11-12-13-15-16-17-19*-21*-24*-27*-30*D |
| Combination*Titanium Pignone | 2 | 11-12-14-15-17-19*-21*-24*-27*-30*-34*D |
| Spline type | Hg L2 groove (specific road for 12V) | ✔ |
| Spider Arm Aluminum | Q.Tà (Pc.) | 2 |
| Titanium pignon | Q.Tà (pc.) | 5 (11-30d), 6 (11-34d) |
| Aluminum ratio | Q.Tà (pc.) | 0 |
| Steel pignon | q.à (pc.) | 7 (11-30d), 6 (11-34d) |
